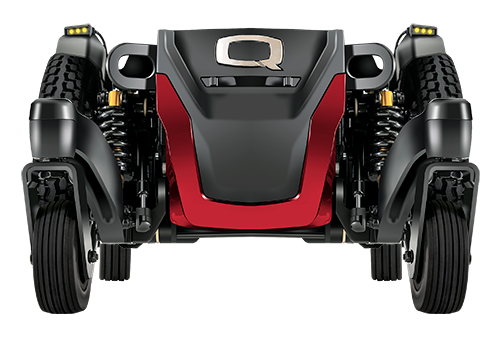

Edge 3 Stretto

$0.00

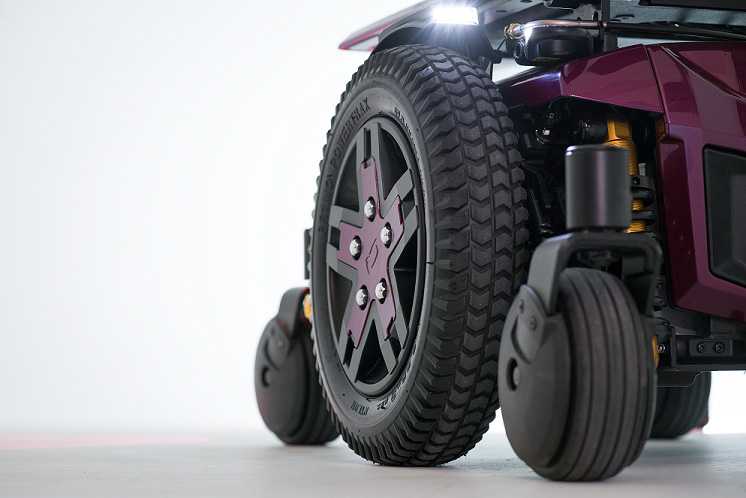

  • 20.75” wide with 12.5” drive wheels

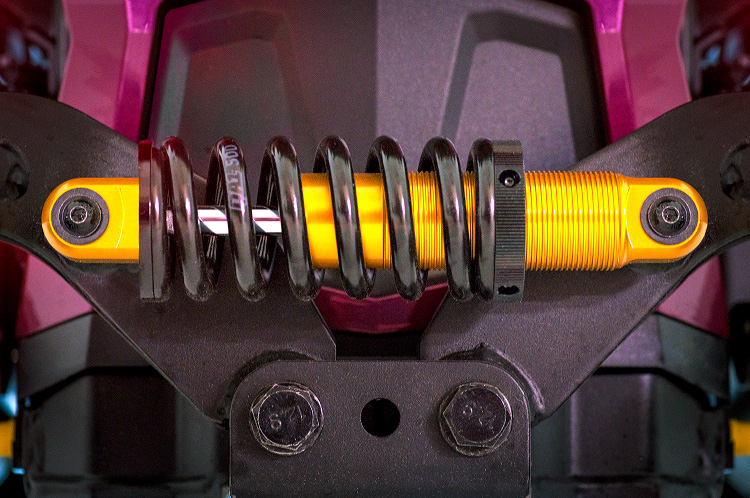

  • Independent SRS (Smooth Ride Suspension)

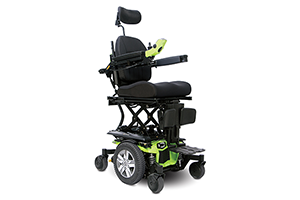

  • iLevel® option available with up to 12” of seat elevation at walking speed (up to 5.5 km/h)
  • Fender lights and USB charger included
  • Toolless removal of rear shroud with battery access door
  • FUN FACT: Stretto is the Italian word for narrow
Model Q6 Edge 3 Stretto™
Drive Configuration Mid-wheel drive
Drive Wheels 14" or 12.5"
Pneumatic or flat free tires
Caster Wheels Front: 5" flat free
Rear: 6" flat free
Maximum Speed4,13 Up to 10 km/h
Up to 5.5 km/h with iLevel activated
Ground Clearance 2.9" (battery tray)
Turning Radius5 21"
Overall Length11 32.5" without front riggings
Base Width 21.75" with 14" drive wheels
20.75" with 12.5" drive wheels

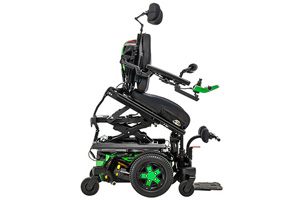

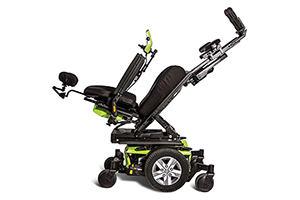

Seating Sizes TRU-Balance® 3
Static Seat: W: 12-20" D: 12-20"
Power Tilt: W: 12-20" D: 12-20"
Tilt & iLevel: W: 12-20" D: 12-20"
Flex Seating: W: 15-20" D: 15-20"
Seat-to-Floor Heights16,17 Synergy®/TRU-Balance® 3 Static Seat8: 16.5-18.5"
TRU-Balance® 3 Static Seat8: 16-18"
Power Tilt8: 17.5-19.5"
Tilt & iLevel8: 17.5-19.5"
Flex Seating8: 16.5-18.25"
Manual Recline10 Yes (TRU-Balance® Flex only)
Battery Size6 40 AH (2) or 55 AH (2)
Battery Weight14 40 AH: 31 lbs. each
55 AH: 40 lbs. each

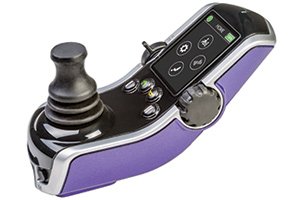

Available Electronics12 120A Q-Logic 3 EX

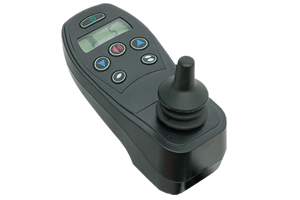

75A Q-Logic NE
75A Q-Logic NE+
Notes:
4 Speed varies with user weight, terrain type, battery charge, battery condition and tire pressure.
5 Without front riggings
6 Battery capacity may change when adding power positioning systems.
7 Weight capacity is dictated by the selection of seating.
8 All measurement +/- 1/8" with 18" x 18" seat, fixed towers, 300 lbs. weight capacity and solid tires (add 3/8" with pneumatic tires). Depths may increase seat-to-floor height. Contact Customer Service for more information. Limited measurements are in the lowest position; does not include elevating system unless specified.
11 Without foot riggings
12 All Quantum Rehab® units can be ordered with specialty controls
13 10 km/h speed available only with Q-Logic 3
14 Battery weight may vary +/- 3 lbs. based on the given manufacturer.
16 Seat-to-floor heights are measured with the unit unloaded. Due to the 4Front’s suspension system, seat-to-floor heights are approximately 0.25” lower when the unit is loaded.
17 16.5" seat-to-floor height is not available with power tilt or iLevel®. 19.5" seat-to-floor height is not available with static seat or power recline.



Edge 3 Stretto motorized wheelchair is the narrowest, most maneuverable power base in America! It is equipped with independent SRS and optional iLevel.
