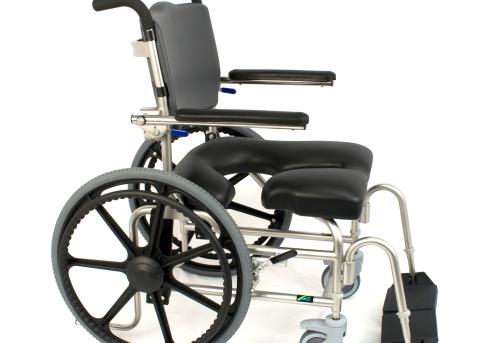

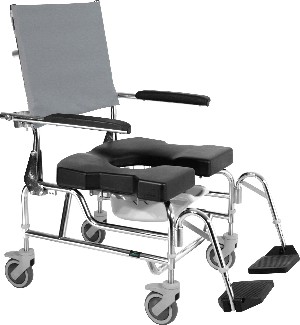

RAZ AP/SP 600 Shower Commode

$2,095.00

SPECIFACTION RAZ-AP600 RAZ-SP600
WEIGHT CAPACITY 600 lbs. 600 lbs.
FRAME WIDTH 22” 22”
SEAT WIDTH 23” 23”
SEAT DEPTH ADJUSTMENT 18” – 20” 18” – 20”
CENTER OF GRAVITY ADJUSTMENT Back Position: Up to 1” fore/aft

Wheel Axle: Up to 11⁄2” fore/aft
Back Position: Up to 1” fore/aft









SEAT HEIGHT (Seat To Floor) Standard 5” Caster:
Optional 6” Caster:
19 1⁄4 ”, 20 1⁄4 ”, 21 1⁄4 ”,
22 1⁄4 ”, 23 1⁄4 ” 20 1⁄4 ”,
21 1⁄4 ”, 22 1⁄4 ”, 23 1⁄4 ”, 24 1⁄4 ”
20 1⁄4", 21 1⁄4", 23 1⁄4"
20 1⁄4", 21 1⁄4", 23 1⁄4"
CLEARANCE HEIGHT
5” Caster (under pan bracket): 5” Caster (under frame):
6” Caster (under pan bracket): 6” Caster (under frame):
14”, 15”, 16”, 17”, 18” 15 1⁄2”,
16 1⁄2”, 17 1⁄2”, 18 1⁄2”, 19 1⁄2”
15”, 16”, 17”, 18”, 19” 16 1⁄2”,
17 1⁄2”, 18 1⁄2”, 19 1⁄2”, 20 1⁄2”
15", 16", 18"
16 1⁄2", 17 1⁄2", 19 1⁄2"
15", 16", 18" 16 1⁄2",
17 1⁄2", 19 1⁄2"
BACK HEIGHT 20” 20”
BACK ANGLE 95°, 100° 95°, 100°
ARMREST HEIGHT 8” 8”
WIDTH BETWEEN ARMPADS 22 1⁄2” 22 1⁄2”
LATERAL SUPPORT
(adjustment range)
1 1⁄4 ” - 2 1⁄2” offset
1” fore/aft
±5° pad angle
1 1⁄4 ” - 2 1⁄2” offset
1” fore/aft
±5° pad angle
FOOTREST ADJUSTMENT
(seat to footplate)
16”-20 1⁄2” (Z709)
18”-22 1⁄2” (Z711)
16”-20 1⁄2” (Z709)
18”-22 1⁄2” (Z711)
STANDARD CASTER:
OPTIONAL CASTER:
Dual-locking 5” casters (x4)
Dual-locking 6” casters (x4)
Dual-locking 5” casters (x2)
Dual-locking 6” casters (x2)
REAR WHEELS
(with molded handrims)
Optional Retrofit Kit (Z618) 24" Wheels
OVERALL WIDTH 26” (w/ standard armpad)
29 1⁄2” (w/ Z715 armpad)
30" (outside handrim)
OVERALL LENGTH
(with footrests)
39”- 40 1⁄2” 44" - 45 1⁄4"
OVERALL LENGTH
(without footrests)
29 1⁄2” 32" - 34 1⁄2"
PRODUCT WEIGHT
54 lbs. (w/ 5” casters)
56 lbs. (w/ 6” casters)
68 lbs. (w/ 5" casters)
69 lbs. (w/ 6" casters)
FRAME AND HARDWARE MATERIAL Stainless Steel Stainless Steel
Two year limited warranty on the frame against manufacturing defects.
One year on all other components subject to normal wear and tear exclusions.
