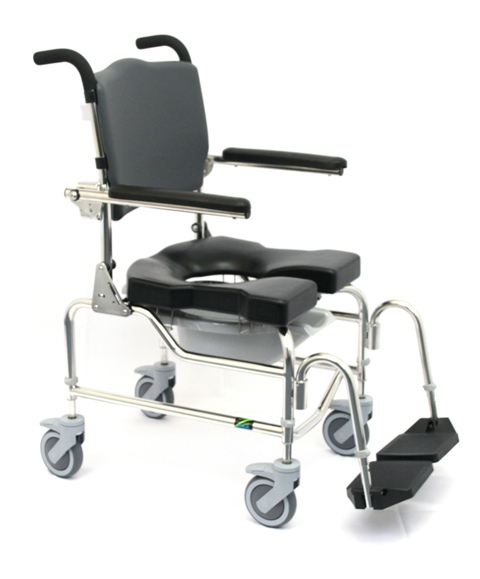

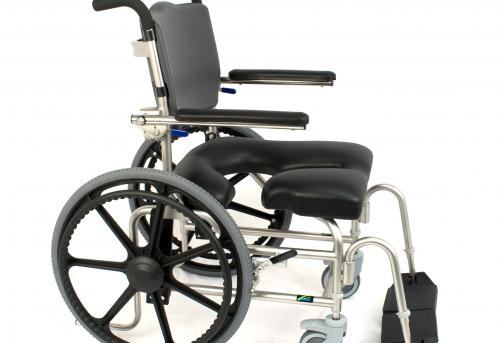

RAZ AP/SP Commode

$1,595.00

  • Stainless steel frame & hardware
  • Adjustable frame height
  • Adjustable tension fabric backrest
  • Flip-up armrests
  • Commode Pan
  • Dual-locking casters
SPECIFICATION RAZ-AP (Attendant Propelled) RAZ-SP (Self Propelled)
SEAT WIDTH 18”
18”
SEAT DEPTH 16” or 19”
16” or 19”
SEAT ADJUSTMENT Up to 2” (fore/aft)
Up to 2” (fore/aft)
SEAT HEIGHT
(front seat to floor)
20” - 23”

20” - 22” (22” wheel)
20” - 23” (24” wheel)

CLEARANCE HEIGHT
(under seat)
10” - 13” w/ pan
14” - 17” w/o pan
15” - 18” w/o pan bracket
10” - 13” w/ pan
14” - 17” w/o pan
15” - 18” w/o pan bracket
BACK TYPE - Standard
w/ Fixed Ht, Flip-Up Arms
17” back ht. (Z505)
20” back ht. (Z514)
17” back ht. (Z505)
20” back ht. (Z514)
BACK TYPE - Optional
w/ Adj. Ht/Angle, Flip-Up
Locking Armrests
Adjusta-Back
17” back ht. (Z510)
20” back ht. (Z515)
Adjusta-Back
17” back ht. (Z510)
20” back ht. (Z515)
ARMREST HEIGHT 8.5” (Z505)
9.5” (Z514)
7” - 9.5” (Z510)
8” - 10.5” (Z515)
8.5” (Z505)
9.5” (Z514)
7” - 9.5” (Z510)
8” - 10.5” (Z515)
WIDTH BETWEEN
ARMRESTS PADS


18.5”
18.5”
LATERAL ADJUSTMENT 2” vertical
1” fore/aft
0.5-1.5” offset
2” vertical
1” fore/aft
0.5-1.5” offset
FOOTREST ADJUSTMENT
(from seat to footplate)
16”- 20.5”
16”- 20.5”
CASTER TYPE AND SIZE Four dual-locking
5” casters

Two dual-locking
5” front casters
REAR WHEELS
(treaded urethane tires)
Optional retrofit kit
22” standard
24” optional
OVERALL WIDTH 23.0” w/ std. arm pad
25.5” w/ Z715 arm pad
26” (outside hand rim)
OVERALL LENGTH
w/ FOOTRESTS
40.2”
40.3” - 43.8” (22” wheel)
41.1” - 44.6” (24” wheel)
OVERALL LENGTH
w/o FOOTRESTS
28.6”
28.7” - 32.2” (22” wheel)
29.5” - 33.0” (24”wheel)
WEIGHT CAPACITY 300 lbs.
300 lbs.
PRODUCT WEIGHT 38 lbs.
47 lbs.
FRAME MATERIAL
& HARDWARE
Stainless steel
Stainless steel
Two year limited warranty on the frame against manufacturing defects.
One year on all other components subject to normal wear and tear exclusions.
