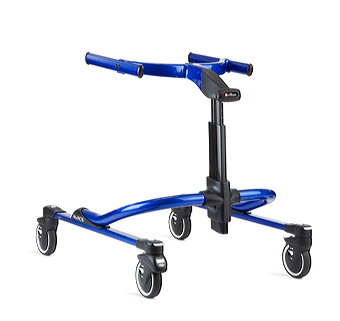

Rifton Pacer — Large Frame (K640)

Rifton Pacer — Large Frame (K640)

Request a quote

Weight capacity: 200 lbs. Elbow-to-floor: 32"–47". Supports Standard, Utility, and Treadmill bases.

Description

The Large Rifton Pacer (K640) is designed for users with an elbow-to-floor measurement of 32" to 47" while standing. With a maximum working load of 200 lbs, it supports all three base types: Standard, Utility, and Treadmill/Stability.

Features gas spring telescoping height adjustment with indexed positions for easy, repeatable setup. The large frame accommodates both Dynamic and Standard upper frames, and is compatible with the full range of Rifton Pacer positioning accessories.

Product Specifications

Pacer Gait Trainer Specifications

Floor to Top of Arm Prompt 32" – 47"
Floor to Top of MPS (not tilted) 17" – 35"
Overall Width — Standard Base 28"
Overall Width — Utility Base 32"
Overall Width — Narrow Treadmill Base 35"
Overall Width — Wide Treadmill Base 40"
Overall Length — Standard Base 36"
Overall Length — Utility Base 40½"
Overall Length — Treadmill Bases 41"
Frame Height — Standard & Utility Bases 28½" – 38½"
Frame Height — Treadmill Bases 30" – 47"
Base Height Without Upper — Std & Utility 16"
Base Height Without Upper — Treadmill 21" – 28½"
Frame Weight — Standard Base 15½ lbs
Frame Weight — Utility Base 19¼ lbs
Frame Weight — Narrow Treadmill Base 27½ lbs
Frame Weight — Wide Treadmill Base 28 lbs
Frame Weight — Standard Upper 9½ lbs
Frame Weight — Dynamic Upper 13½ lbs
Dynamic Upper Movement — Vertical 3"
Dynamic Upper Movement — Horizontal 2"
Caster Diameter — Standard & Treadmill 5½"
Caster Diameter — Utility Front 8"
Caster Diameter — Utility Rear Wheels 11½"
Max Treadmill Width — Narrow 29"
Max Treadmill Width — Wide 34"
Max Treadmill Height 11"
Maximum Working Load 200 lbs
