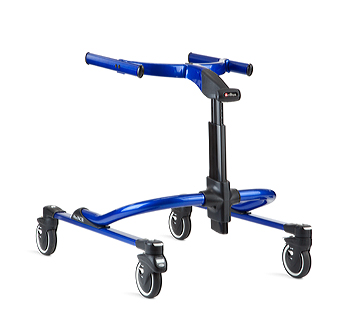

Rifton Pacer — XL Frame (K650)

Request a quote

Weight capacity: 250 lbs. Elbow-to-floor: 34"–49". Standard base only.

Description

The XL Rifton Pacer (K650) is designed for users with an elbow-to-floor measurement of 34" to 49" while standing. With a maximum working load of 250 lbs, it is the largest frame in the Pacer system.

The XL frame supports the Standard base only (Utility and Treadmill bases are not available in XL). It accommodates both Dynamic and Standard upper frames, and is compatible with the full range of Rifton Pacer positioning accessories.

Product Specifications

Pacer Gait Trainer Specifications

Floor to Top of Arm Prompt 34" – 49"
Floor to Top of MPS (not tilted) 19½" – 37½"
Overall Width — Standard Base 31½"
Overall Width — Utility Base
Overall Width — Narrow Treadmill Base
Overall Width — Wide Treadmill Base
Overall Length — Standard Base 39¾"
Overall Length — Utility Base
Overall Length — Treadmill Bases
Frame Height — Standard & Utility Bases 31" – 41"
Frame Height — Treadmill Bases
Base Height Without Upper — Std & Utility 18½"
Base Height Without Upper — Treadmill
Frame Weight — Standard Base 22½ lbs
Frame Weight — Utility Base
Frame Weight — Narrow Treadmill Base
Frame Weight — Wide Treadmill Base
Frame Weight — Standard Upper 11 lbs
Frame Weight — Dynamic Upper 15 lbs
Dynamic Upper Movement — Vertical 3"
Dynamic Upper Movement — Horizontal 2"
Caster Diameter — Standard & Treadmill 5½"
Caster Diameter — Utility Front
Caster Diameter — Utility Rear Wheels
Max Treadmill Width — Narrow
Max Treadmill Width — Wide
Max Treadmill Height
Maximum Working Load 250 lbs
