Savaria M2lift

$0.00

Rugged, rust-resistant construction: Ideal for indoor or outdoor use in moderate and coastal climates. Rust-resistant aluminum car walls and floor, with non-skid platform floor and exit ramp. All steel components have yellow zinc/baked enamel powder coat for rust protection.
Easy to install all-in-one solution: Includes 42" high aluminum flush upper landing gate with spring-hinge and weather resistant lock (Savaria WR-500), integrated aluminum fascia panel for a finished look without custom construction, and upper landing bridge for smooth navigation in and out of lift.
Battery operated reliable chain drive technology: Smooth, quiet operation and swift 9 feet per minute travel. Battery operated unit charged through a standard electrical outlet so lift can be used during a power failure.
Other standard features: Constant-pressure operation, mountable weather-resistant cordless radio frequency call/send stations with keyed access on car and call stations, automatic access ramp.
Finish: Beige powder-coat paint.
Safety features: Slack chain safety switch and underpan sensors to stop the lift if an obstruction is detected, emergency stop button and alarm on car.
Warranty: 36 months parts.

Options
Lifting/tower height: 40" (tower 79.5")

Applications: Residential, indoors, outdoors
Standard capacity: 750 lb (340 kg)
Shortest travel distance: 15.5" (39.37 cm)
Maximum travel distance: 40" (101.6 cm)
Platform size: 37" x 54" (interior)
Nominal speed: 9 ft/min (0.025 m/s)
Car access/configuration: straight through enter/exit
Drive/motor: direct drive gearbox with chain suspension
Power supply: 24 VDC motor and operating system with 120 VAC battery charging
Complies with ASME A 18.1 part 5 -2017 USA; Canadian residential in regions that do not require CSA B613-00.

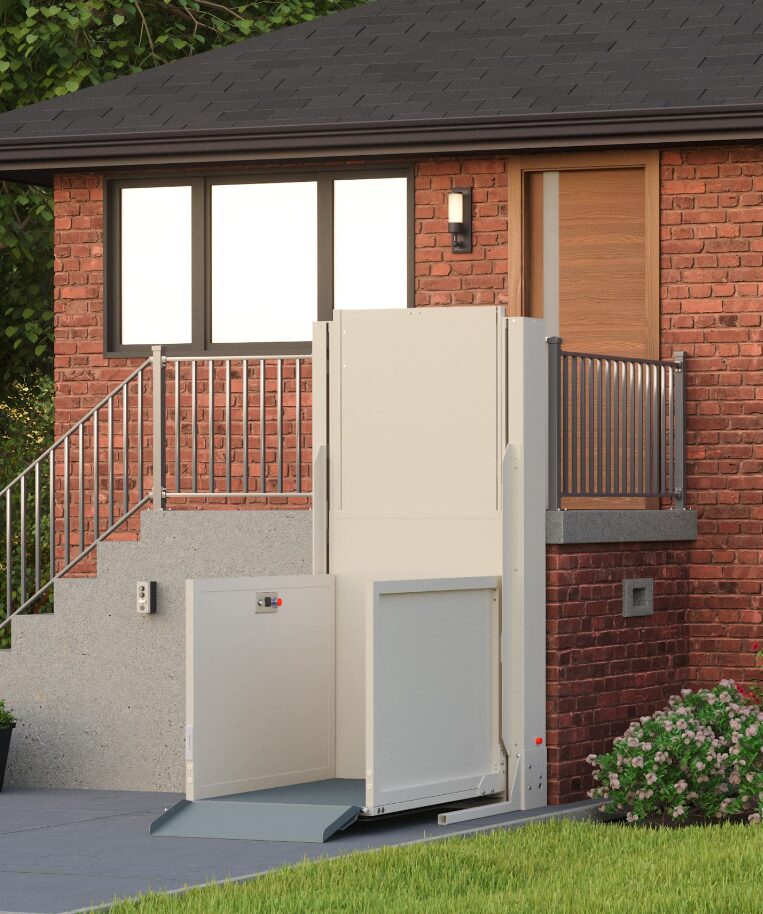

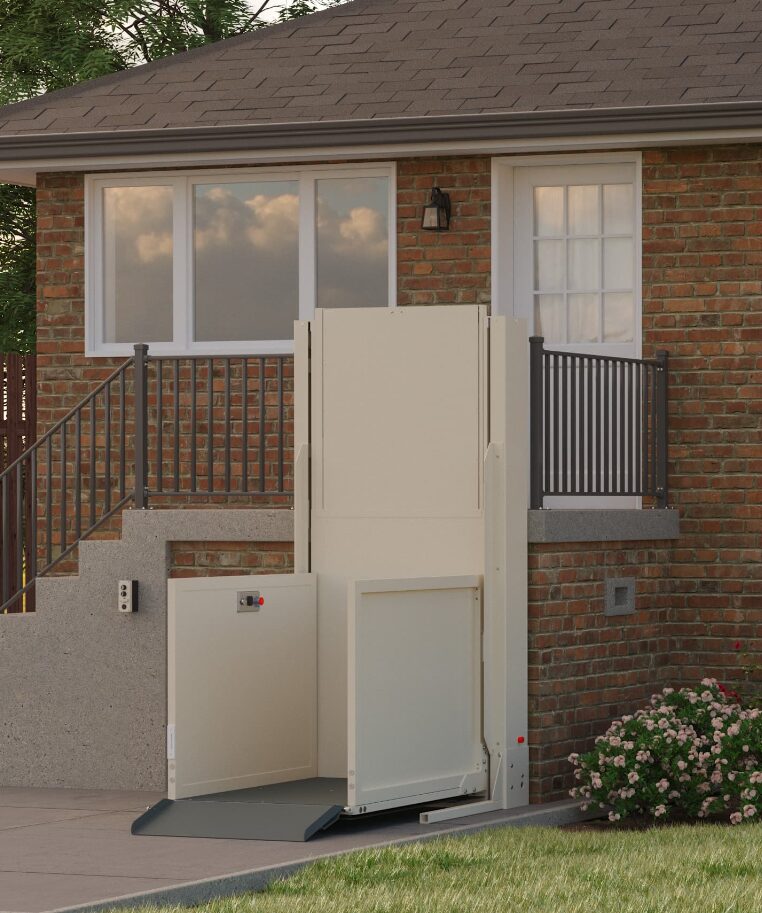

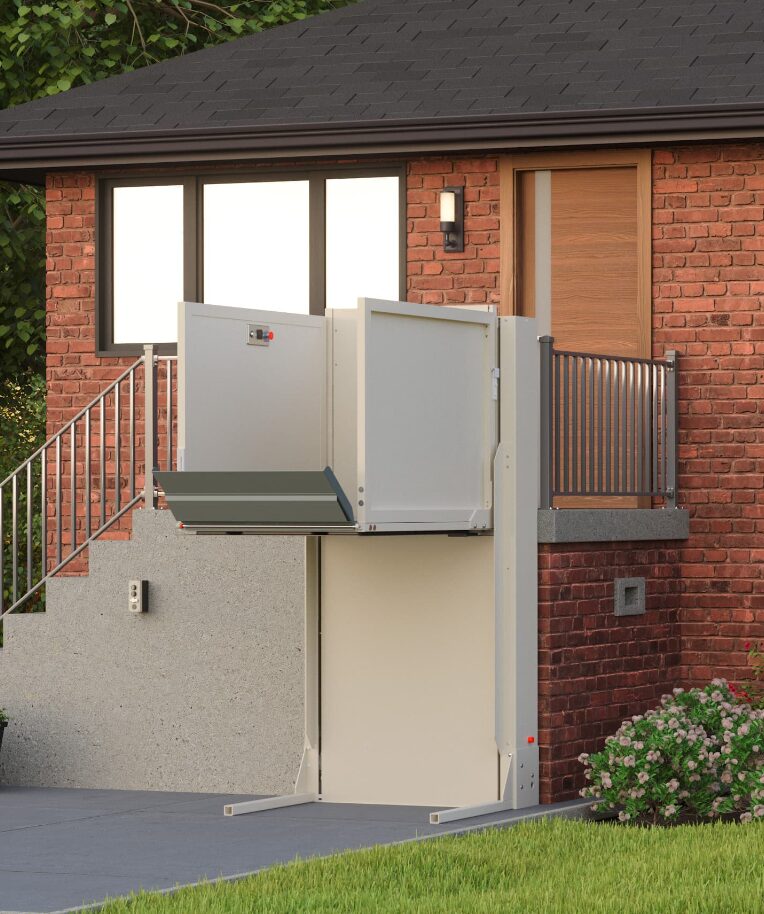

The M2lift is a complete porch or deck lift package, providing 2-stop access for wheelchairs or other mobility and accessibility equipment.

The M2lift is a complete porch or deck lift package, providing 2-stop access for wheelchairs or other mobility and accessibility equipment.
