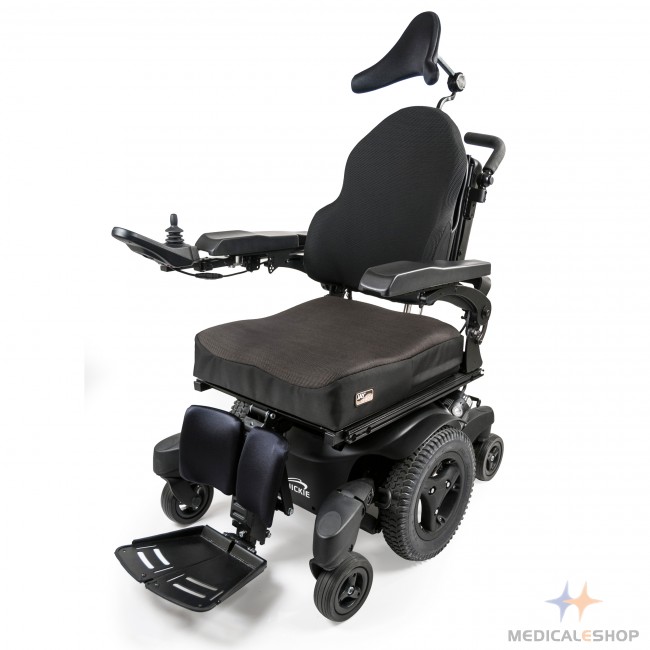

Quickie QM 7 Series

$0.00

The Quickie QM-7 Series wheelchairs combine function and luxury for a unique driving experience.

Categories: , Brand:

Description

  • Mid-wheel drive intuitive handling
  • Linix 6 mph, 4-pole standard motor package for all models
  • Contoured, sleek base style available with 5 shroud color options
  • Independent 6-wheel suspension for superior
  • traction and handling across multiple terrains
  • Gas dampening system for smooth, stable transitions
  • 3" curb climbing capability
  • 22° transition angle helps prevent high centering on curb cuts

Product Specifications

Dense Technical Specifications

Drive Wheel Position Mid Wheel Drive
Funding Information Adult: WP0000686 Pediatric: WP0000687
User Weight Capacity QM-710 and QM-720 Models: 300 lbs. QM-715 HD Model: 400 lbs.
Overall Wheelchair Weight No Power Seating Option: 310 lbs. Single Power Seating Option (Tilt or Recline): 350 lbs. Multiple Power Seating Options (Tilt & Recline): 375 lbs.
Overall Wheelchair Width 25"
Turning Radius 20"
Overall Wheelchair Length 36" without footrests
Suspension SpiderTrac™
Transit Approved Yes
Seat Width Range 12" to 22"
Seat Depth Range 12" to 22"
Seat-To-Floor Height No Power Seating Option: 17.3" to 20.3" Single Power Seating Option (Tilt or Recline): 18.3" to 21.3" Multiple Power Seating Options (Tilt & Recline): 17.1" to 20.1"
Pre-Set Seat Frame Angle 0°, 3°, 6°, 9°
Back Height Range 14" to 28"
Maximum Speed 5.0 mph High Torque Package 6.0 mph Standard Package 8.0 mph Community Package
Frame/Shroud Color Options Candy Apple Red High Gloss Black Candy Blue Silver Copper Green Apple Yellow Pearl Pink Candy Purple Matte Black Midnight Blue Pearl White Digital Camo Woodland Camo Carbon Fiber Print
Drive Wheel 14" Cast Wheel Solid Inserts (knobby) 14" Cast Wheel Pneumatics (knobby)
Caster Wheels Front and Rear: 6" Solid - Black or Grey option
Transit Option 4-point Transit Package
LED Light Package N/A
Wheel Locks Wheel Locks
Manual Conversion Kit N/A
Ventilator Options Fixed Vent Tray (Pulmonetic LTV Models)
Batteries 22NF Flat Top with Straps Group 24 Flat Top Gel Cell with Straps Group 34 Flat Top Gel Cell with straps
Battery Charger 8A Dual Mode (Compact) CTE
Drive Control Options Non-expandable VR2 controller (90 Amp) Non-expandable R-net PM120 Controller (120 Amp) Expandable R-net Controller (90 Amp) Expandable R-net PM120 Controller (120 Amp)
Joysticks VR2 Joystick R-net Standard LED Joystick R-net Joystick with Stereo Jacks and Monochrome Display R-net Joystick with Toggle, Speed Potentiometer, Stereo Jacks and Color Display
Joystick Mount Fixed Swing-Away
Joystick Handle Ball Foam Ball T-handle Goalpost
R-net OMNI and Output Options R-net Input Control Module and Display with Built-in Infrared and Armrest Mount R-net Output Module (ECM) R-net Bluetooth Mouse-over
OMNI Mount Swing-Away (right or left side)
Switch Inputs for Joysticks or OMNI Stereo to 2 Mono Splitter Ribbon Buddy Button Disc Wobble Micro Light Egg - Black Dual Toggle Switch Only 4-way Toggle Switch with 5th Button DB9 Connector
Switch Mount Bracket Single Dual Toggle 4-way Toggle
Specialty Driver Control Options Quickie Sip n' Puff System ASL Head Array Package (Adult) ASL Head Array Package (Pediatric) Switch-It Head Array Package (Adult) Switch-It Head Array Package (Pediatric) ASL Proportional Mini Joystick Chin/Lip Control Package ASL Proportional Mini Joystick Midline with Gatlin Package Quickie Proportional Chin Control Package
Attendant Control For VR2 (Mounted right or left) For R-net (Mounted right or left)
Electronics Programmers VR2 Hand Held Programmer (HHP) R-net PC Programmer with Dongle DTT VR2 and R-net Cables
Seat Frame ASAP II Recline Seat
Powered Seating Options Quickie SPOT 50° CG Tilt 3.7 Power Recline with Power Shear Reduction 9" Power Seat Elevate 12" Power Seat Elevate
Powered Seating Control Method Switch Control 1 Actuator with Dual Toggle and Mount Switch Control 1 Actuator with Buddy Button and Mount Switch Control 2-3 Actuators with 4-way Toggle Switch and Mount Thru Drive 1 Actuator Thru Drive 1 Actuactor with Assignable Buttons Thru Drive 2+ Actuators Thru Drive 2+ Actuators with Assignable Buttons
Backrest Frame Type Angle Adjustable (ASAP II) Manual Recline 40° Power Recline
Angle Adjustable Backrest Options Non-folding Folding
Back Cane Angle Straight 8° Bend
Towel Bar Depth Shallow Deep (extends 4" from back canes)
Back Cane Height ASAP II: Fixed Low (15.5") Fixed Medium (17.5") Fixed Tall (19.5")3.7 Power Recline: 24" to 28"
Backrest Type Upholstery Tension Adjustable Upholstery Ballistic Nylon Tension Adjustable Upholstery 3DX Vented SPOT Curved JAY SPO Posterior Positioning ART SPO Posterior Positioning Integrated JAY J3 (full line available)
Head Support Options Headrest Mounts: Whitmyer Axys Whitmyer Linx Whitmyer Cobra XtraHeadrest Pads: 8" Plush 10" Plush 14" Plush
Lateral Thoracic Support Swing-Away 4" x 4" Swing-Away 4" x 5" Swing-Away 4" x 6" Swing-Away 6" x 4" Swing-Away 6" x 5" Swing-Away 6" x 6"
Thigh Support SPOT Long Thigh Support with Removable Mount (right or left)
Knee Adductor Supports Swing-Away Short or Long Arm Mounts (right or left) Small or Large Pad Sizes
Chest Strap Padded Chest Strap
Armrests Dual Post Flip Back Dual Post Flip Back Height Adjustable Cantilever Cantilever with Locking Post Single Post Height Adjustable Reclining Cantilever Reclining Cantilever with Locking Post
Arm Pads Desk Length Waterfall Full Length Waterfall Desk Length Standard Full Length Standard Standard Reclining Arm Pad Otto Bock Reclining Arm Pad Otto Bock Hand Pad
Legrests 65° Swing-Away 70° Swing-Away 75° Swing-Away 90° Swing-Away Manual ELR Swing-Away Power Centermount ELR with Articulation Swing-Away Power ELR with Articulation Fixed Centermount
Legrest Extensions Short Medium Long High Mount
Footplates Composite with Heel Loop Adult Angle Adjustable with Heel Loop Kids Angle Adjustable with Leg strap Aluminum One-piece Angle Adjustable Centermount Single Centermount Dual Centermount High Mount
Tray Tables Small Tuffak 13-14 Medium Tuffak 15-17 Large Tuffak 18-20
Backpack Black Utility Black/Charcoal Kids
Positioning Belts Auto Style Buckle 2" Aircraft Buckle 2" Aircraft Padded Buckle
Mounting Accessories N/A
Miscellaneous N/A
