Stairfriend 23 Curved Stairlift
*This product is for purchase only
Purchase: Request a quote
The Savaria Stairfriend 23 is precision measured and custom built for stairs with multiple levels, curves or intermediate landings.
*See product details below.
Description

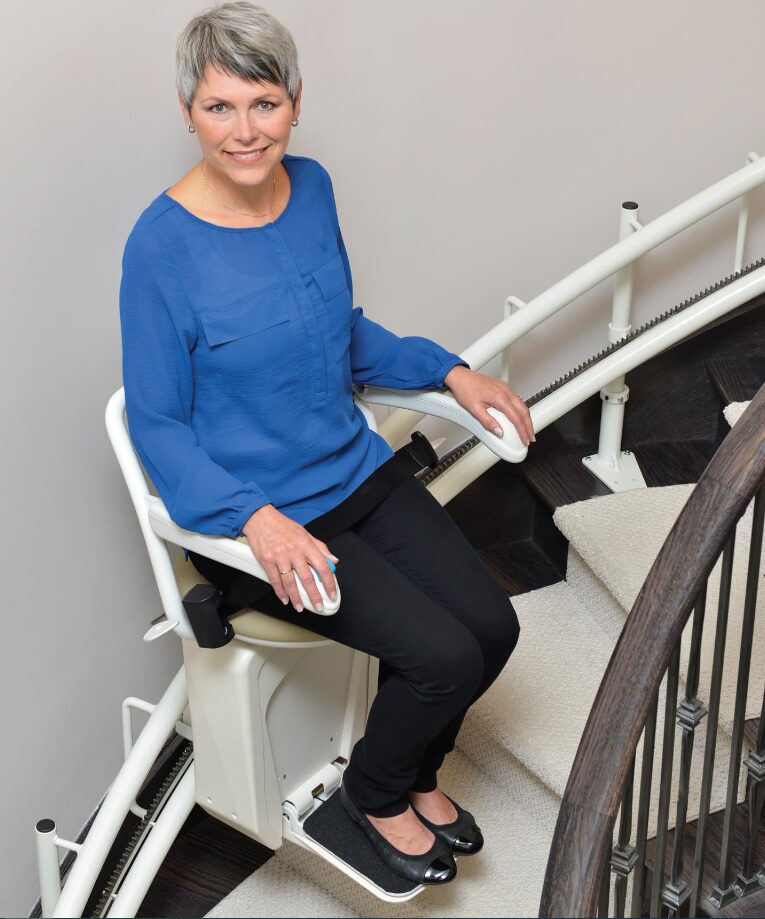

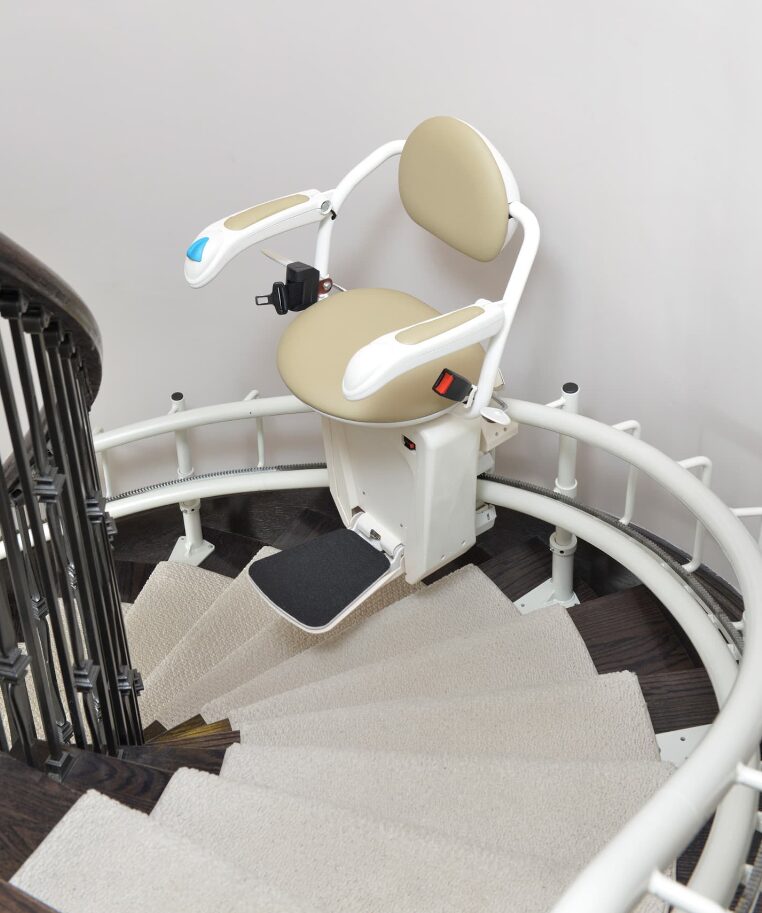

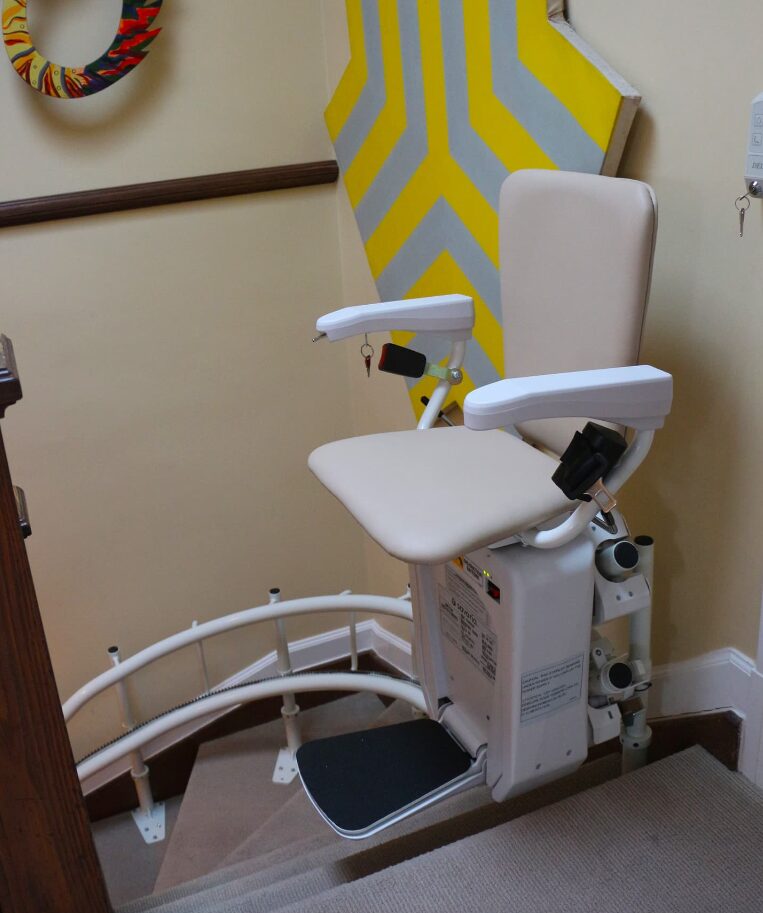

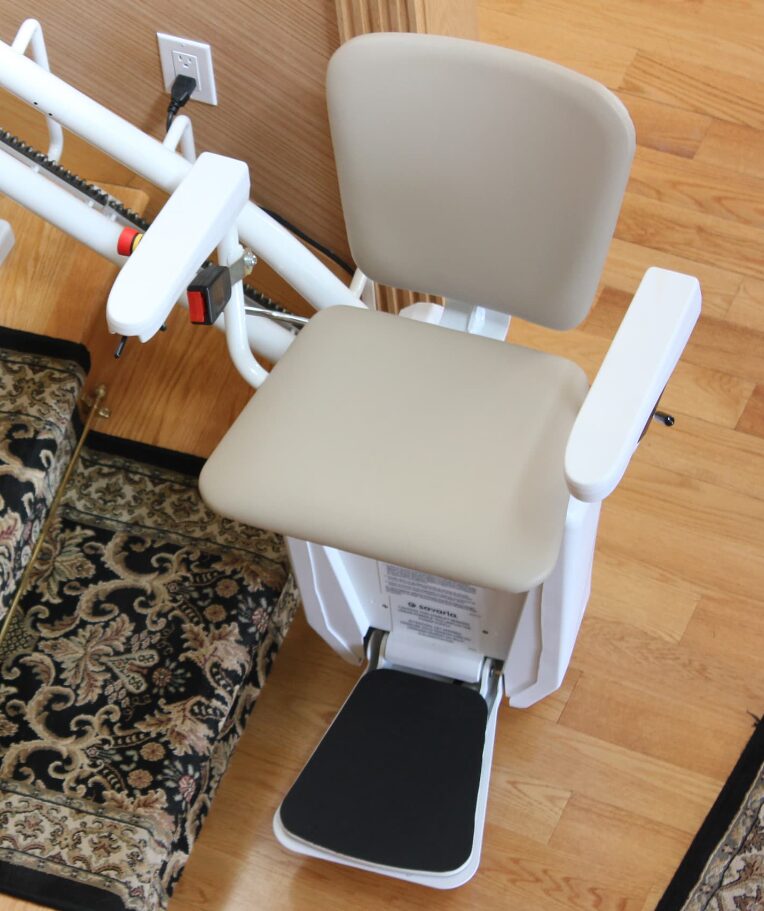

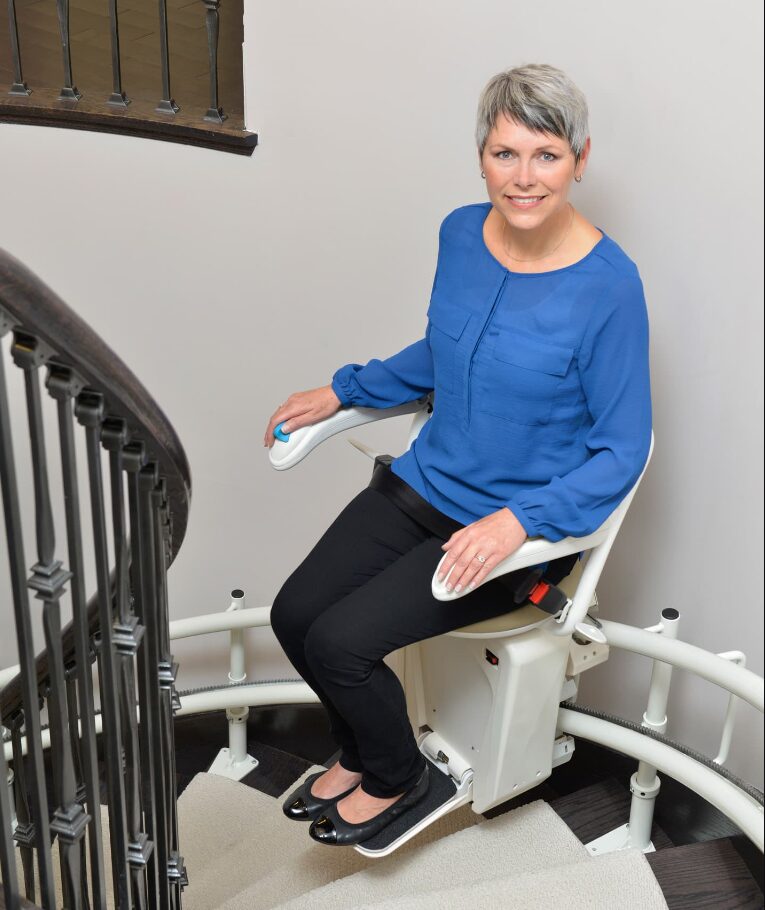

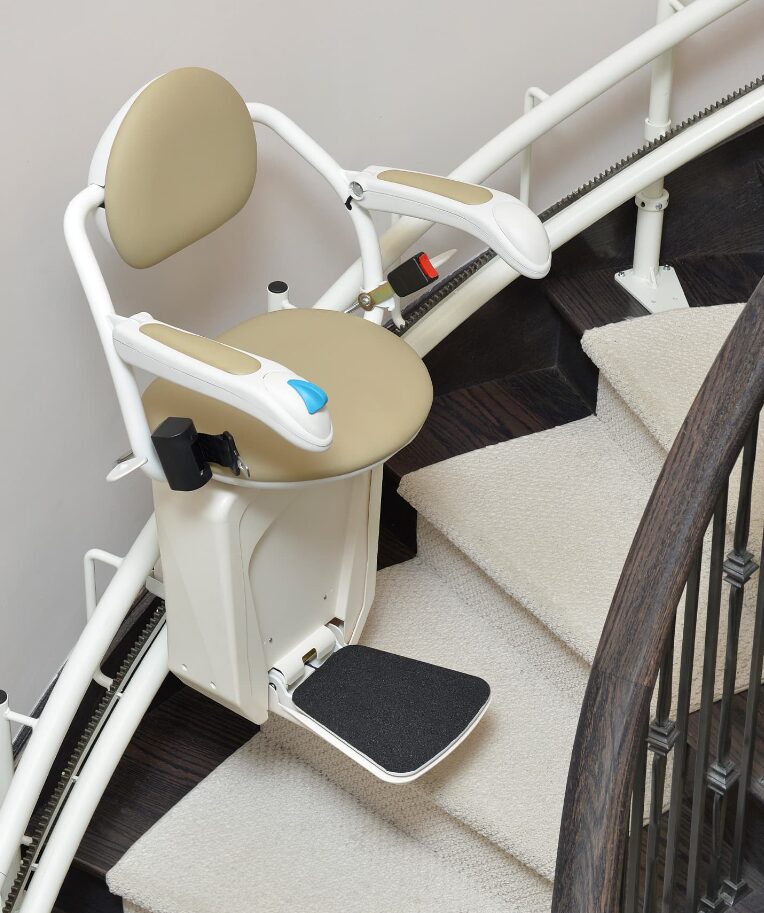

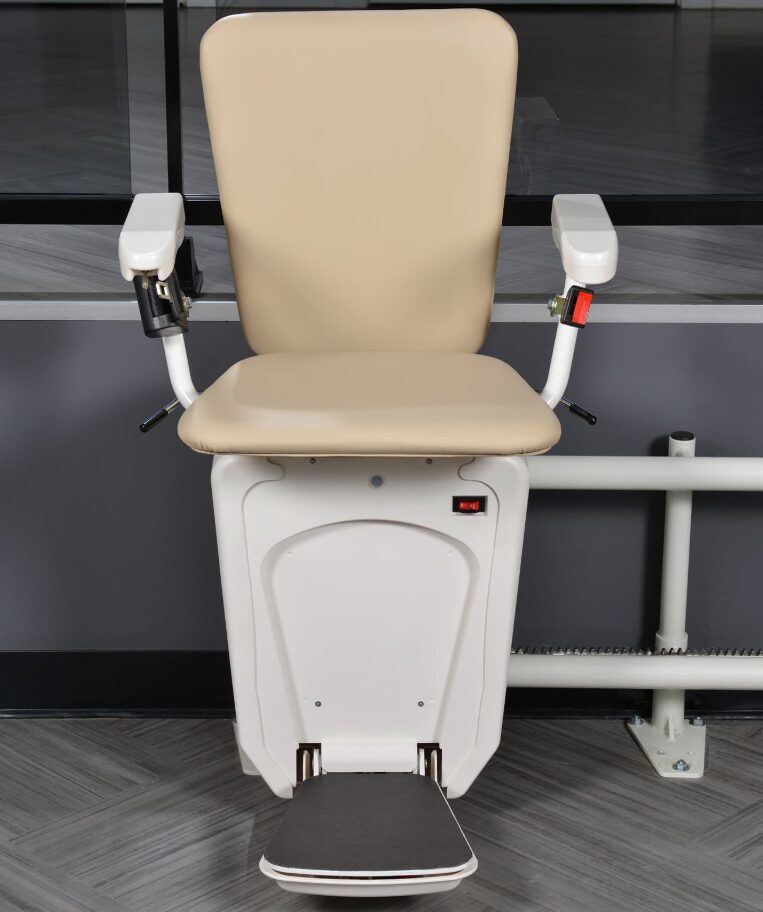

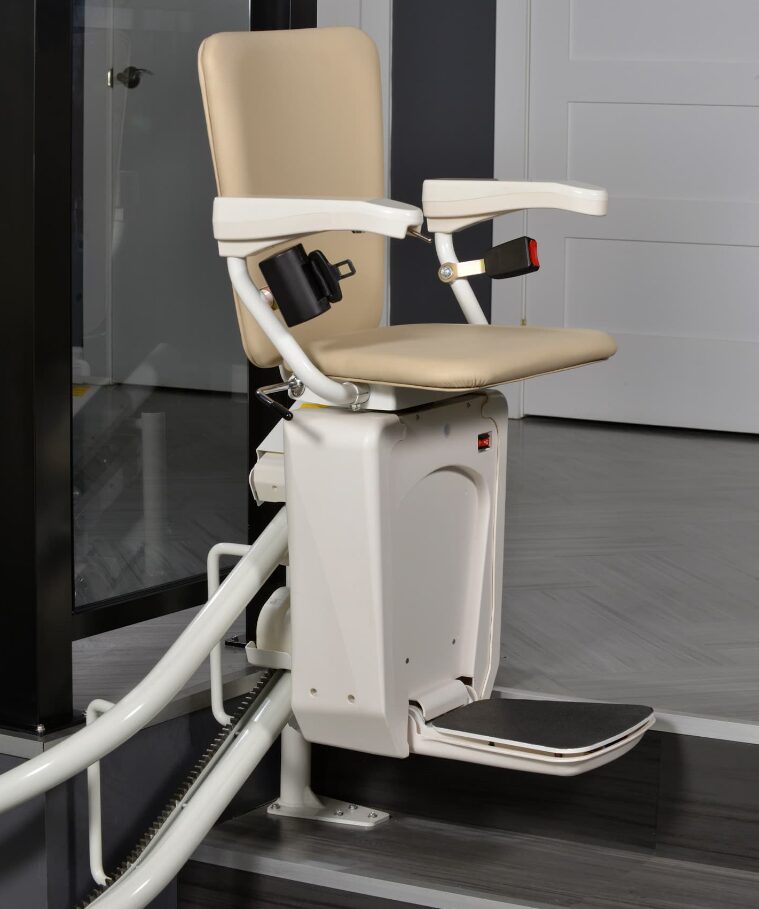

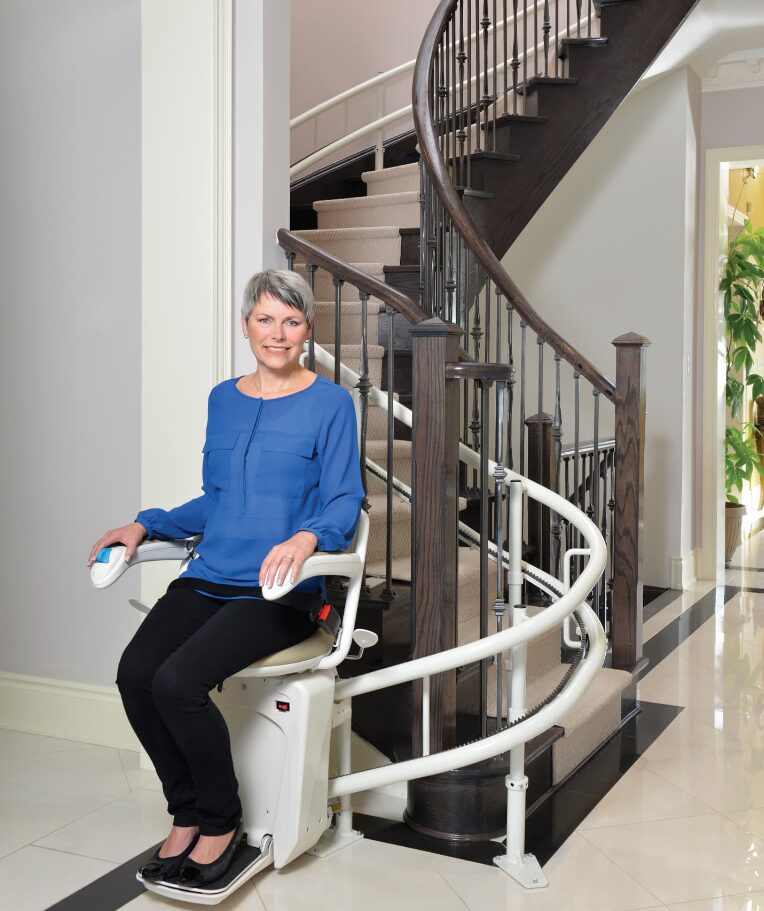

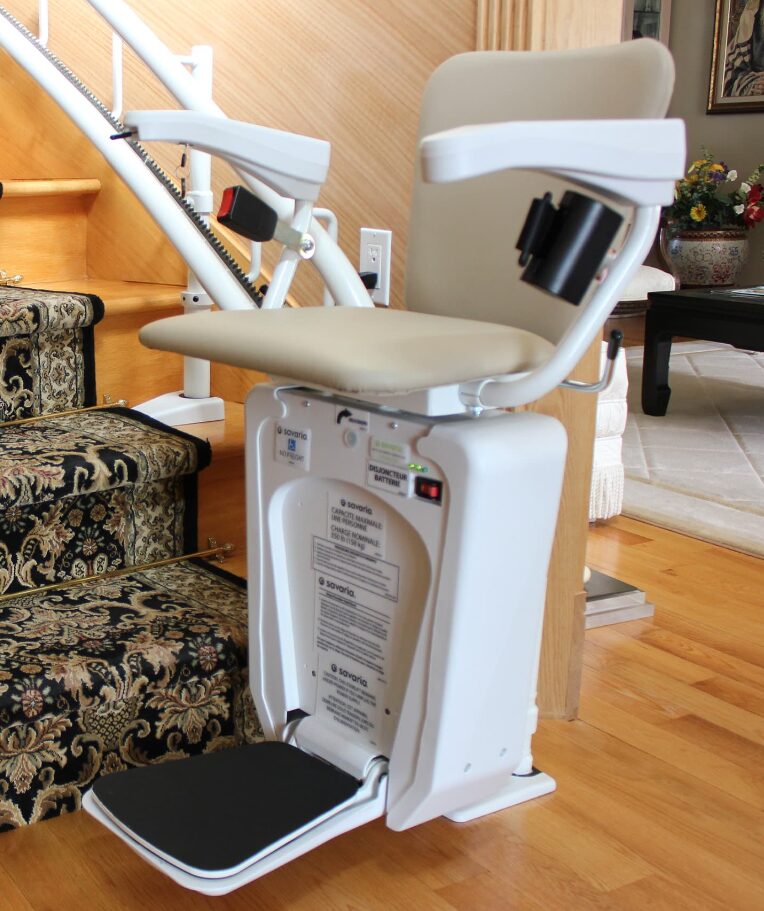

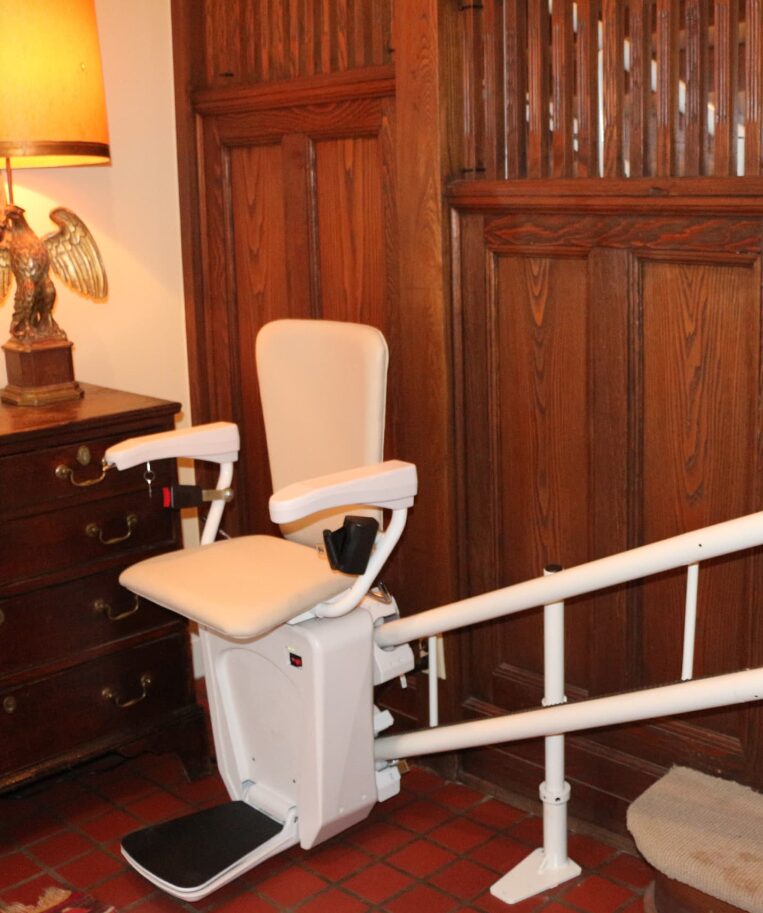

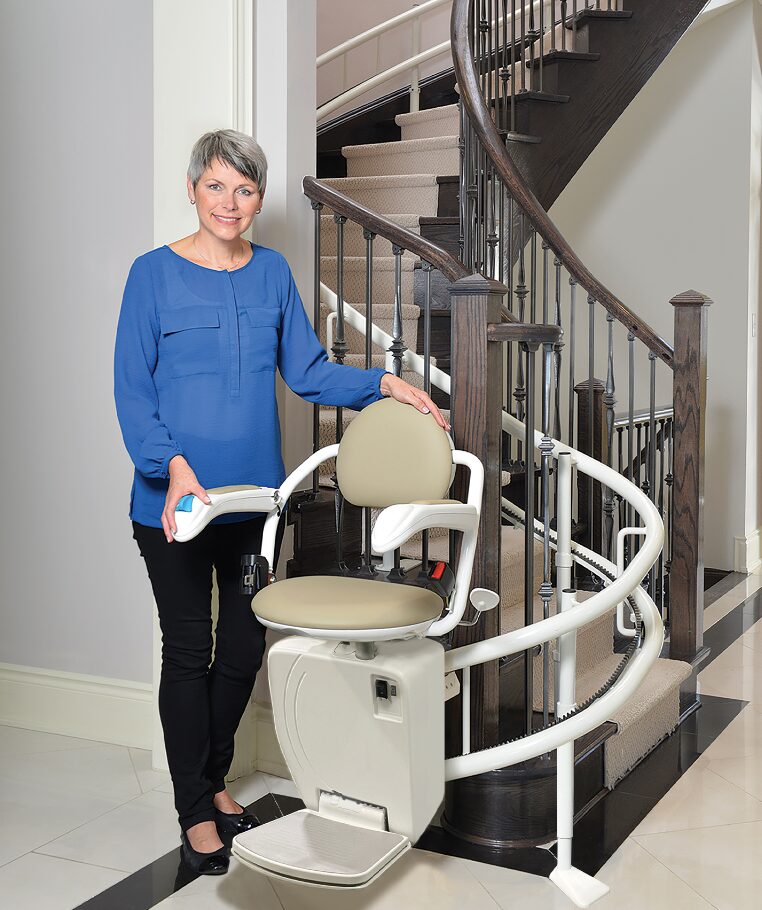

The Stairfriend 23 is a custom curved stairlift designed to provide safe, reliable access on staircases with turns, curves, or intermediate landings. Built to fit the unique layout of your home, it delivers a smooth, comfortable ride while maximizing available space.
With simple controls, comfortable seating options, and customizable parking positions, the Stairfriend 23 offers an easy-to-use solution that helps you remain independent in the home you love.
- Battery powered: Operates through power interruptions with charging stations at top and bottom and optional intermediate landings.
- On-board controls: With soft start and smooth stop operation, seat swivels and locks into position for safe boarding and deboarding, retractable seat belt.
- Radio frequency remote controls: Offer greater range and control of device from other rooms.
- Overspeed governor and obstruction sensors: To stop the chair if it meets an object in both up or down travel directions.
- Reliable rack and pinion drive: With sturdy, twin steel tube rail construction.
- Custom-built: For curves, turns, landings and parking, and can be mounted on either side of stairs.
- LED status lights: To advise of any issues.
- Finish options: Choice of seat with wipe-clean synthetic leather.
- Warranty: 36 months parts.
Options: Choice of seat, 90º or 180º parking, top or bottom overrun, keyless access, emergency stop button, extra-long seatbelt and 5-point harness.
Product Specifications
| Applications | Residential, commercial*, indoor. |
|---|---|
| Standard Capacity | 300 lb (136 kg), optional 350 lb (160 kg) |
| Maximum Travel | 84' (25.60 m) |
| Travel Speed | 20 ft/min (0.1 m/s), 12 ft/min (0.06 m/s) through curves. |
| Motor | 0.6 hp, 24V (DC) |
| Fold-up Depth | 16.25" (413 mm) |
| Fold-out Depth | 27" (686 mm), with offset footrest: 25.75" (660 mm), with small footrest: 25" (640 mm) |
| Range of Incline | 0˚ to 56˚ (*where permitted by code) |
Images & Videos
Installation & delivery
Getting the right equipment is only part of the process. Our trained technicians deliver, install, and adjust everything we sell so it’s set up properly, safely, and ready to use from day one. If you’re unsure what will work best, we can even bring options to your home to help you decide.
